Overview

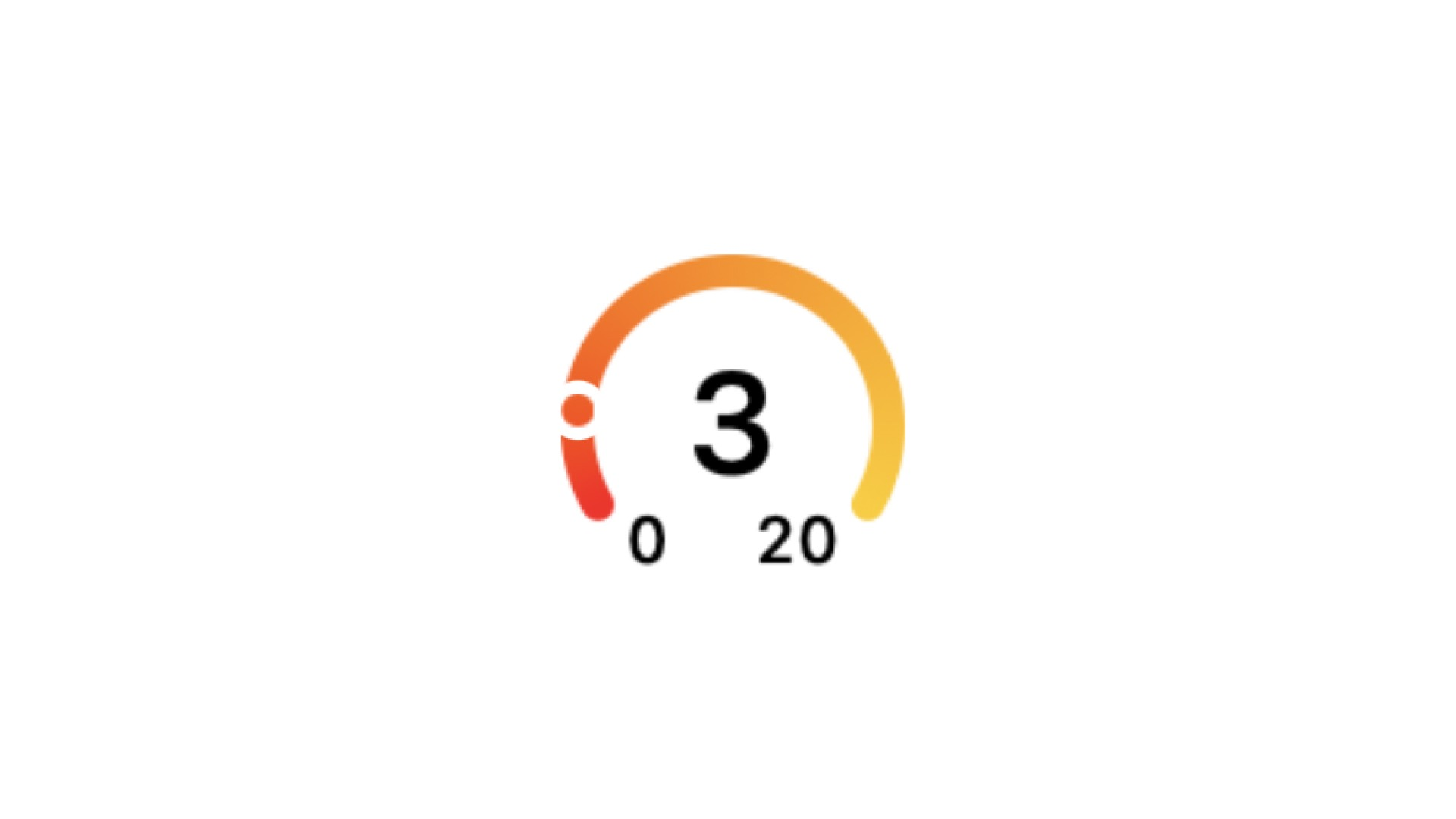

Gauges are a visual way of displaying a range of values and a specific point within that range. Gauge elements use Apple’s native gauge. Gauge Overview

​
Properties

In addition to the properties below, gauges also have access to general object properties in the Expression Editor.

​
Type

Set the gauge type to linear, linear with a dot, circular, and circular with a dot.
  • Linear: A linear gauge partially filled to indicate the value.
  • Linear with a dot: A linear gauge fully filled with a dot indicating the value.
  • Circular: A circular gauge partially filled to indicate the value.
  • Circular with a dot: A circular gauge fully filled with a dot indicating the value.

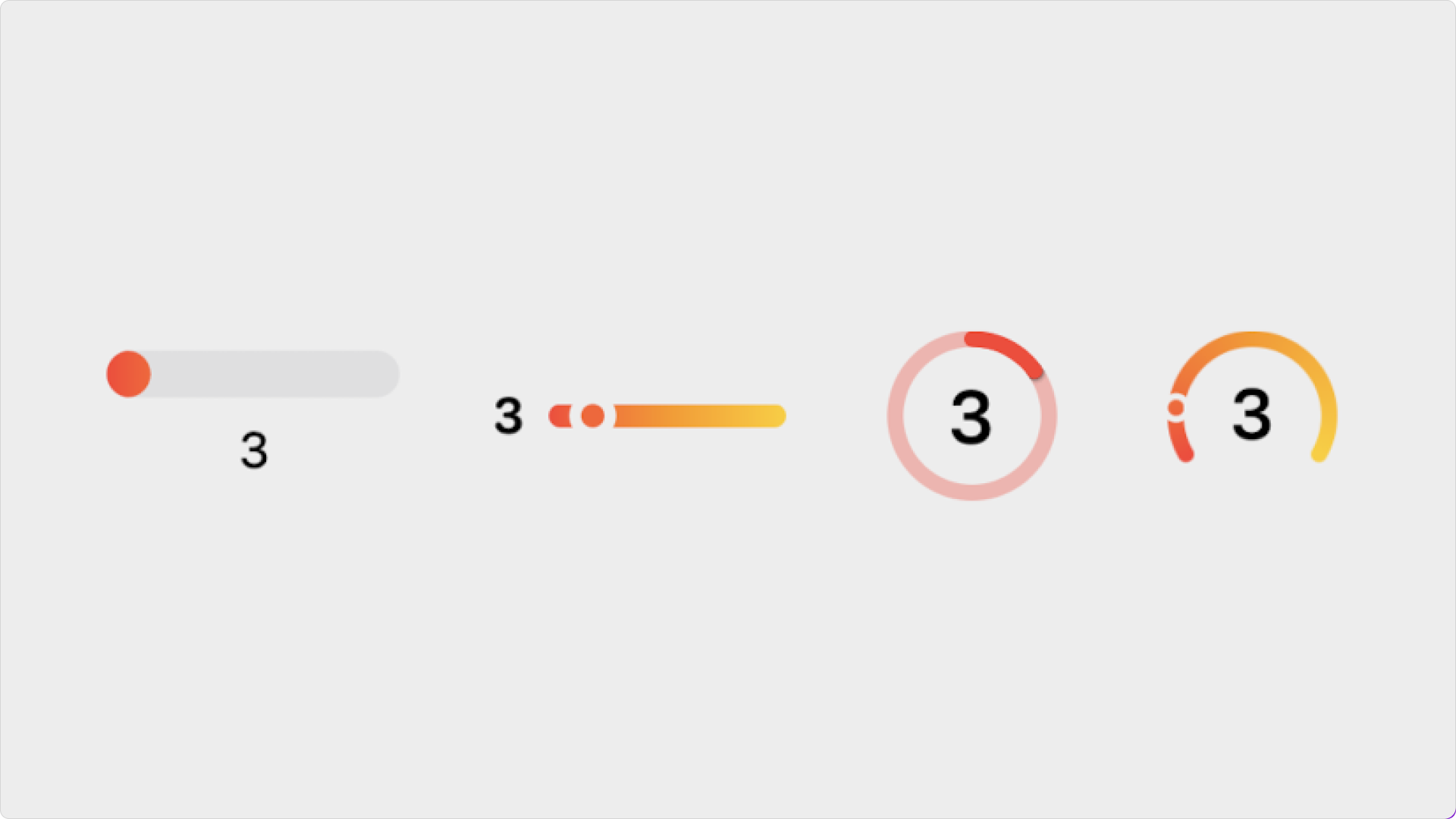

Gauge Type

​
Style

Set the gauge’s appearance: For Linear Gauges
  • Default: Displays a gauge with 16pt height.
  • Thin: Displays a gauge with 4pt height.
For Circular Gauge
  • Default: Displays a gauge with or without displaying the gauge value.
  • Symbol: Displays a gauge with an SF Symbol inside.
For Circular Gauge with a Dot
  • Default: Displays a gauge with or without displaying the gauge value.
  • Symbol: Displays a gauge, with or without displaying the gauge value, with an SF Symbol underneath.
  • Range: Displays a gauge, with or without displaying the gauge value, with the minimum and maximum values underneath.

​
Show Value

Choose to show the gauge’s value within the gauge.

​
SF Symbol

Select the SF Symbol to display within the gauge. (only available for both circular gauges)

​
Value

Set the gauge’s starting value.
Gauge.value
Type: number
Can get or set the value.

​
Min

Set the bottom of the gauge’s range.
Gauge.min
Type: number
Can get or set the value.

​
Max

Set the top of the gauge’s range.
Gauge.max
Type: number
Can get or set the value.

​
Customize

  • Gauge Fill: Set the number (1-5) of colors used to fill the gauge.
  • Colors 1, 2, 3: Set each of the gauge colors.
  • Dynamic Fill: Set if the gauge color should adjust based on the current value. If active, the gauge color will always be solid. If inactive, the gauge will be a gradient. Dynamic Tint is available for all gauges, but it is the only option for circular gauges and linear gauges with a thin style.
  • Symbol or Value Fill: Set the color of the symbol or value.

​
Resources

Links

Apple Human Interface Guidelines for Gauges

Apple Developer Documentation for Gauges
